Grain Bag Loader

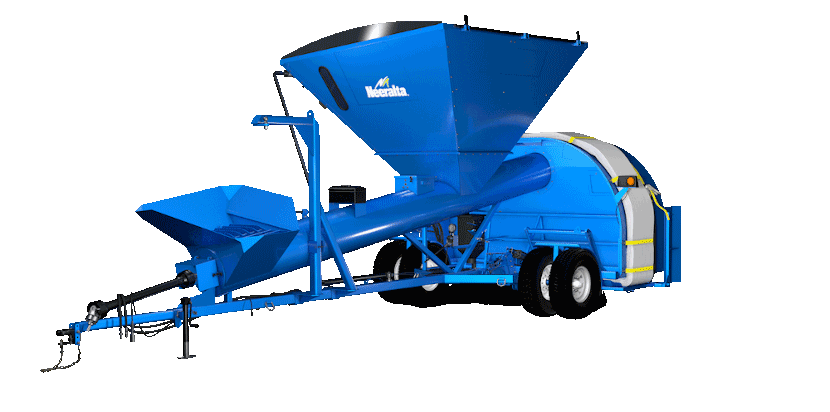

When you need a fast and flexible grain storage option, nothing matches the versatility of the Neeralta Grain Storage system. The Grain Bag Loader component of this system provides innovations in reliability and ease-of-use that are unequaled by anything else in the field. All of the features and benefits to the Neeralta Grain Bagging System are backed by an equally reliable warranty and service package. Neeralta engineering ensures rugged durability backed by a company that fully stands behind its' products.
Grain Bagger Models
1024S
10’ with 24” auger
With its large hopper and industry leading 24" tube, the Neeralta 1024S grain bagger allows for fast in-field storage directly from the grain cart or combine. Power through harvest and leave others in the dust with the Neeralta 1024S model.
1024S Specifications
-
Main tube diameter: 24”
-
Max Bag Size: 10’ x 500’
-
Hopper size: 10’ x 12’
-
Capacity: 50,000 Bu/Hr
-
PTO: 1000 Small
-
PTO HP Required: 125
-
Brakes: Hydraulic Disc
1020
10’ with 20” auger
The Neeralta 1020 Grain Bag Loader is the model that set the bar for ease of use back in 2010. The optional on-board swing auger is able to unload trucks without having to be towed to the field behind the machine. In addition, the standard 20" main tube and generous hopper size make the 1020 model an excellent choice for unloading grain carts.
1020 Specifications
-
Main tube diameter: 20”
-
Max Bag Size: 10’ x 500’
-
Hopper size: 8’6” x 10’
-
Capacity: 30,000 Bu/Hr
-
PTO: 540 Direct Drive
-
PTO HP Required: 100
-
Brakes: Hydraulic Disc
-
Transport to work mode: 60 seconds
Available with or without Swing Auger / Conveyor
1024
10’ with 24” auger
The 1024 model is the perfect blend of the 1020 and the 1024S model. The Neeralta 1024 has the large hopper and the 24" tube with the length to be able to accommodate the swing auger. While the swing auger is optional, most 1024's are sold with it since it opens up many options for your farming operation.
1024 Specifications
-
Main tube diameter: 24”
-
Max Bag Size: 10’ x 500’
-
Hopper size: 10’ x 12’
-
Capacity: 50,000 Bu/Hr
-
PTO: 1000 Small
-
PTO HP Required: 125
-
Brakes: Hydraulic Disc
-
Transport to work mode: 60 seconds
Available with or without Swing Auger / Conveyor
1224
10’-12’ Variable
The Neeralta 1224 Grain Bag Loader, with it's patented variable-width feature, is designed and built for high-capacity operations and elevators. The large hopper and 24” main tube allow grain carts to empty quickly. With the ability to fill either 10’ or 12’ bags, the 1224 offers the ultimate in performance and flexibility for those that need to fill a high number of 10' or 12' grain bags in a hurry.
1224 Specifications
-
Main tube diameter: 24”
-
Max Bag Size: 10’ or 12’ x 500’
-
Hopper size: 10’ x 12’
-
Capacity: 50,000 Bu/Hr
-
PTO: 1000 Small
-
PTO HP Required: 125
-
Brakes: Hydraulic Disc
-
Transport to work mode: 60 seconds
Available with or without Swing Auger / Conveyor
1224S
12’ with 24” auger
With the same great features as the 1024S, the Neeralta 1224S adds the versatility of being able to fill 10' or 12' grain bags. The variable width also helps you by being able to narrow down for road transport, making for faster and safer transport times to the field without the need to reconfigure the machine in order to get to work. For those who want to fill a high number of 10' or 12' grain bags in a hurry, without the need to unload trucks, the Neeralta 1224S is the ultimate in grain bagging performance and flexibility. Want to power through harvest? The Neeralta 1224S model won't disappoint!
1224S Specifications
-
Main tube diameter: 24”
-
Max Bag Size: 10' or 12’ x 500’
-
Hopper size: 10’ x 12’
-
Capacity: 50,000 Bu/Hr
-
PTO: 1000 Small
-
PTO HP Required: 125
-
Brakes: Hydraulic Disc
Grain Bag Unloader
The Neeralta Grain Bag Unloader is the solution to unloading and rolling your grain bags. The patented grain bag roller is integrated directly into the design of the machine. This industry-first feature, along with the remote control, four-way swivel spout, adjustable auger with extra long and high reach, make this grain bag extractor the leader in the industry.
Are you in the market for a 12' extractor? No problem here. No need to buy a totally different model that is much larger and heavier at a price point that breaks the bank. The Neeralta grain bag unloader has a cross-auger extension package that adds the ability to unload 12' grain bags.
Click here to find out more.
"Loading semis with the extractor is quick and easy
with a remote that keeps you out of the dust,
and the bag roller saves time since there is
no bag to roll up later."
- Tony Fast,Fast Ag Montana.
Lustre, MT
Trailer Model
The Trailer Extractor model has the speed of transport and the flexibility of towing choices in mind. Choose any vehicle with a standard hitch to get the unit to the field at highway speeds. The machine can also be run with low horsepower tractors to save depreciation costs.
3 Point Hitch Model
The 3-Point hitch model is an overall shorter machine than the cross-auger-to-hitch length of the trailer model. This model is very easy to control with the tractor steering if small corrections need to be made during extraction.
Specifications (both models)
-
Main auger diameter: 16”
-
PTO HP Required: 100
-
Capacity: 12,000 Bu/Hr
-
Hydraulic flow: 8 GPM @ 2,200 PSI
-
Bag Baler max bag length: 500+
-
Bag diameter: 9’ – 10‘
-
Bag diameter (extension package): 9’ – 12‘
-
PTO: 540
